Description

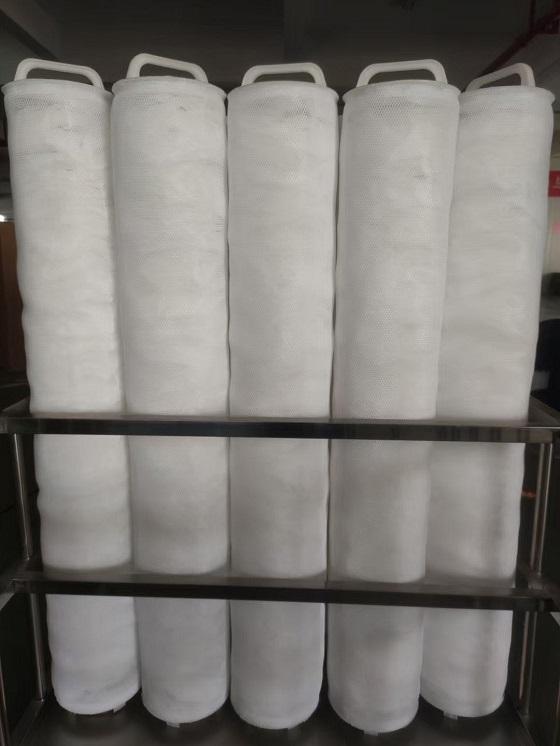

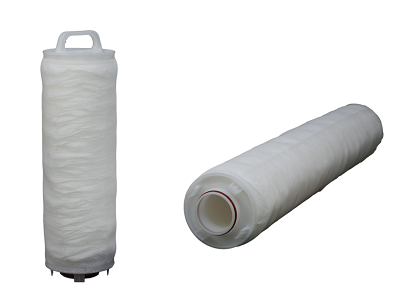

CMI CHFM2 Series filter cartridge is a kind of high flow filter which are made from depth PP or glass fiber material. The filter has a big diameter, with inner core, single open ended. Flow is from outside to inside to make sure all dirt particles can be intercepted on the outside side of the filter.

CHFM2 is a membrane pleated cartridge with special radial pleated structure to enlarge the filtration area and increase the dirt hold capacity. These factors provide customers with consistent performance and effluent quality.

Its big diameter brings big filtration area to reduce the filter housing diameter. Meanwhile, it also saves up the change out time compared with conventional cartridge system. It gives customer lower investment cost, disposal cost, as well as long service life.
The structure also provides you with a better sealing to ensure a perfect filtration.


Features

-Unique radial pleated structure
-High flow capacity
-High contaminant loading capacity
-All contaminants can be effectively removed
-Great saving of change out time
-Outside to inside flow pattern-all dirt will contain outside the cartridge
-Polypropylene material brings good chemical compatibility
-Large diameter reduces filter housing space
-Easy cartridge change-out without use of special tools


Specifications

-Material:
   Filter Media: Pleated PP, Pleated glass fiber; melt blown
   Outside Support: Polypropylene (PP)
   End Caps: Glass fiber reinforced polypropylene
   Inner core: Polypropylene (PP)
   O-ring Seal: EPDM, NBR, Silicon, Viton
-Micron ratings: 0.5,1,5,10,20,40,75,100micron
-Outside Diameter: 152mm(6inch)

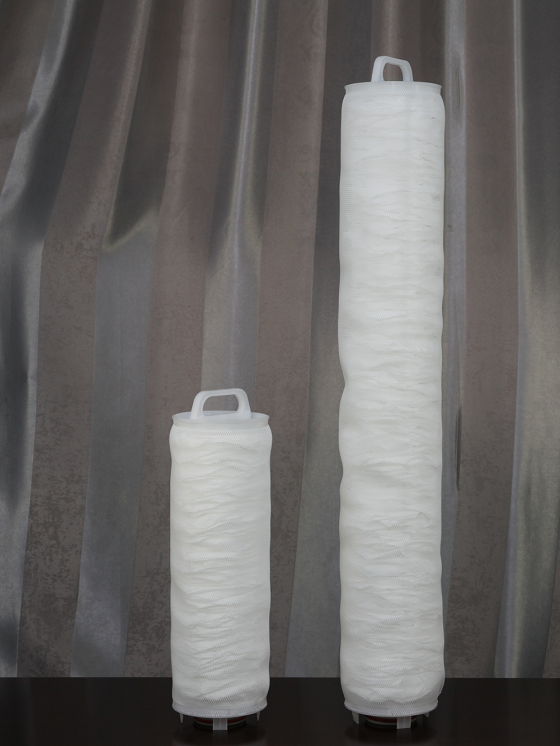

-Length: 20inch, 30inch, 40inch, 50inch, 60inch
-Max. Operating temperature: 80℃
-Max. Operating DP:4.0 Bar@20℃; 2.4bar @ 80℃


Note: Other types of high flow filters are also available. Pls. contact CMI at [email protected] if you have more exacting requirements.
