Description

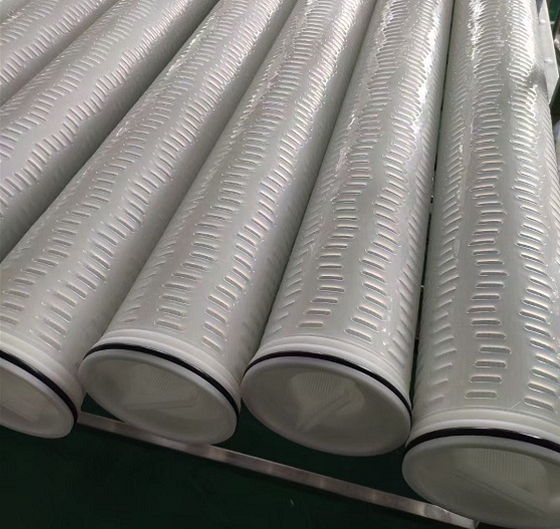

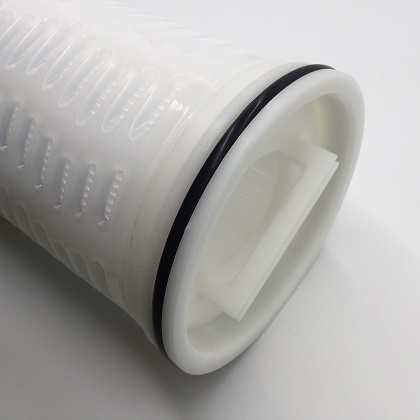

High Flow Filter Cartridge is a filter with large diameter, coreless single open end pleated cartridge. Big diameter with big filtration area reduces up to 50% of filter system and save up to 60% of change out time compared with conventional cartridge system. It gives customer lower investment cost, disposal cost, as well as long service life.
The structure also provides you with a better sealing to ensure a perfect filtration.

There are several types of high flow cartridges: the most common used type is flow from inside to outside; while other three types are from outside to inside.


Features

－High flow up to 84m3/h per cartridge for water
－Gradient pore structure
－Max. up to 50% reduction of filter vessel
－Filtration area is up to 9.45m2
－All contaminants can be effectively removed
－Other types are available upon request
－Up to 60% saving of change out time
－PP material are made from all FDA approved material suitable for food & beverage related application
－Inside to outside flow pattern-all dirt will contain inside the cartridge
－Absolute rated filtration at 99.98% with choice of 1, 3,5,10,20,40 and 70 micron

Specifications

－Material:
   Filter Media: Pleated PP, Pleated glass fiber; melt blown
   Outside Support: Polypropylene (PP)
   End Caps: Glass fiber reinforced polypropylene
   O-ring Seal: EPDM, NBR
－Micron ratings: 1,5,10,20,40,75,100micron

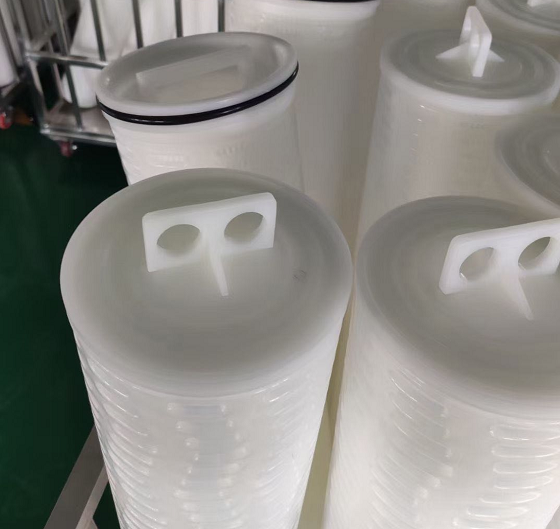

－Outside Diameter（End with Handle）: 160mm; Flat end: 154mm
－Length: 20inch, 40inch, 60inch
－Max flow rate based on Water:
20inch: 140gpm(28m3/h)
40inch: 280gpm(56m3/h)
60inch: 400gpm(84m3/h)
－Recommended Change out DP: 2.4bar @ 20℃
－Surface Area
20inch: 3.15 m2
40inch: 6.3 m2
60inch: 9.45 m2
